Telescopic Belt Conveyor

Extendable loading system for efficient truck and container operations

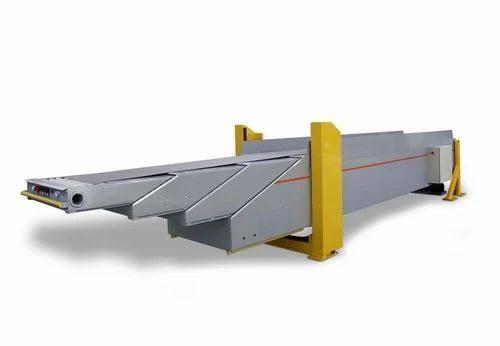

Telescopic Belt Conveyor - View 1
1 / 4

Product Overview

Telescopic Belt Conveyor system manufacturer. Multi-stage telescopic belt conveyor system designed for rapid loading and unloading of trucks, containers, and warehouses. Features hydraulic extension and retraction capabilities with adjustable height settings, enabling operators to reach deep into vehicles while minimizing manual handling.

Technical Specifications

Number of Stages3-5 stages
Fixed Length4-16 meters
Extension Length5.4-22 meters
Total Extended Length9.4-38 meters
Belt Width600-800 mm
Belt MaterialPVC/PU/Rubber with alligator clip joints
Load Capacity50 kg/meter
Maximum Load4000 kg total
Belt Speed15-40 m/min (adjustable)
Extension Speed10-20 m/min
Height Range750-2100 mm (adjustable)
Motor Power3-6.95 kW total system
Voltage220V/380V/415V, 50/60Hz
Control SystemPLC with touch panel interface

Key Features

  • Multi-stage telescopic extension up to 21 meters
  • Hydraulic height adjustment system (up to 3 meters lift)
  • Bi-directional belt movement for loading/unloading
  • PLC intelligent controller with fault detection
  • Mobile design with solid tires and castor wheels
  • Variable speed control with VFD drive
  • Emergency stop safety features
  • Compact retracted length for space efficiency
  • Heavy-duty steel frame construction
  • Remote control operation capability

Frequently Asked Questions about Telescopic Belt Conveyor

How does a telescopic conveyor speed up truck loading?

Our telescopic belt conveyors extend directly into trucks and containers (up to 38m), eliminating manual carrying. They reduce loading time by 50-60% and required manpower by up to 60% compared to manual loading.

What industries benefit from telescopic conveyors?

E-commerce fulfillment centers, FMCG warehouses, logistics hubs, courier companies, food & beverage distribution, and any operation involving frequent truck or container loading/unloading.

How many stages does your telescopic conveyor have?

Our conveyors feature 3-5 telescopic stages with total extended lengths from 9.4 to 38 meters. Belt speed is adjustable from 15-40 m/min with PLC-controlled operation and hydraulic height adjustment up to 2100mm.

What is the cost of a telescopic belt conveyor in India?

Cost varies by number of stages, extension length, belt width, and automation level. As a direct manufacturer in India, we offer significant cost savings over imported alternatives. Get a project-specific quote.
